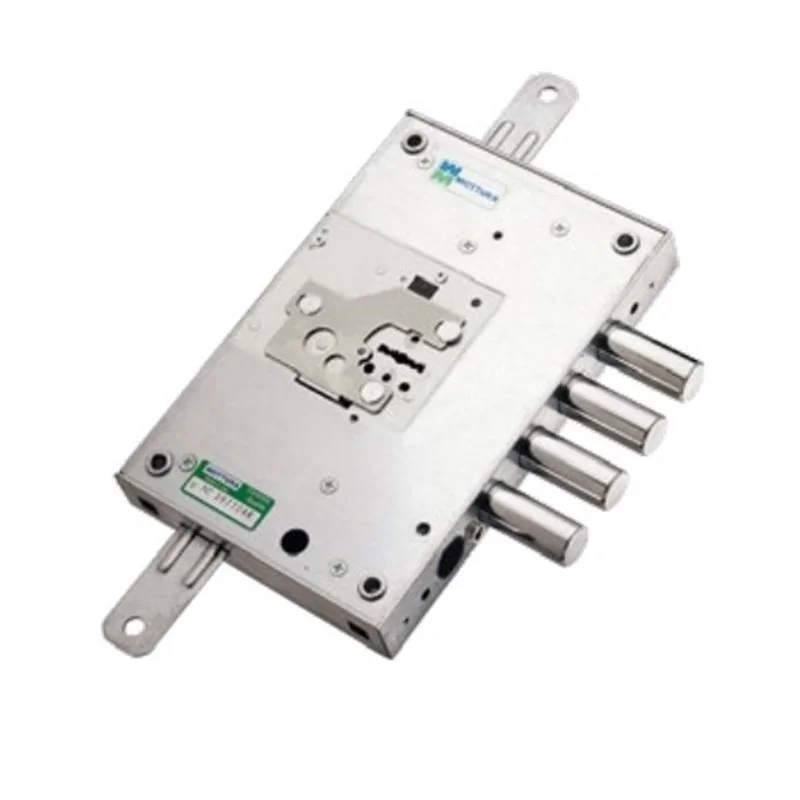

MOTTURA 52.J583 REPLAY RECODABLE DOUBLE-BITTED THREE-POINT RIM LOCK

Mottura 52.J583 Series 52J REPLAY is a three-point rim lock for armoured doors with a recodable double-bitted key system. The REPLAY core allows the lock coding to be changed using the dedicated recoding key, useful if a key is lost or stolen.

Series 52J incorporates the ANTIDECODUE system against Bulgarian pick manipulation techniques and is Made in Italy.

Configuration: three-point rim version, without latchbolt. Bolt-centre variants of 28 or 37 mm are available.

Technical data: key and handle backset 63 mm; round Ø18 mm bolts with 36 mm travel; 4 turns; lock case 206 × 136 × 30.5 mm; zinc-plated finish.

Rods: 20 mm rod travel. Rods and connecting accessories not included must be selected to suit the door configuration.

Supplied with: 3 turquoise-head double-bitted keys with 40 mm stems, recoding key art. 92.328, internal escutcheon art. 95.324 and external escutcheon art. 95.323.

Range options: 50 or 63.8 mm stem keys, internal/external key-guide bush, construction key, service key, Y-type key and MyKey versions are available on request.

Handing: available in right-hand and left-hand versions; select the correct handing according to the opening direction and door configuration.
