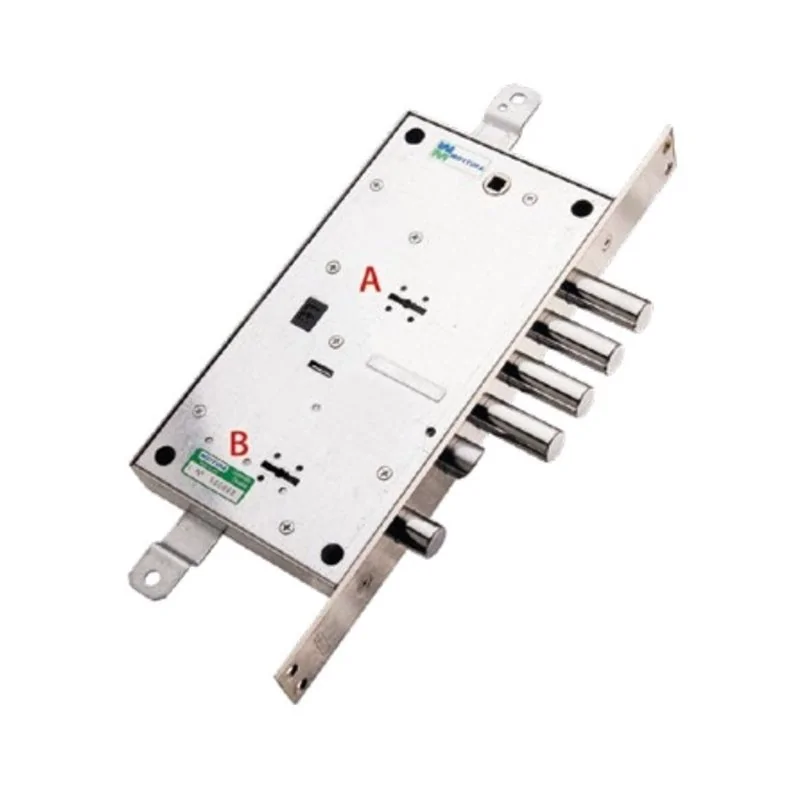

MOTTURA 54.789 SERIES 54 EASY GO MULTIFUNCTION DOUBLE-BITTED MORTISE LOCK
€219.00
Tax Included
Mottura 54.789 Series 54 is a multifunction mortise lock for armoured doors with two EASY GO double-bitted mechanisms and ANTIDECODUE anti-pick protection. Locks are independent; 63 mm backset, 4 turns on the upper mechanism and reversible Ø20 mm latchbolt.
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Mottura 54.789 Series 54 is a multifunction mortise lock for armoured doors. Series 54 uses EASY GO double-bitted keys and Mottura ANTIDECODUE protection against Bulgarian-pick manipulation techniques.
Two-mechanism configuration: triplice upper mechanism and laterale lower mechanism; locks are independent.
Upper mechanism: 4/3 Ø18 mm bolts at 28/37 mm centres + Ø20 mm latchbolt; 4 turns; 40 mm bolt travel; □8 handle square; reversible latchbolt.
Lower mechanism: 1 Ø18 mm bolt, 2 turns. 18 mm bolt travel.
Specific function: The lower lock operates the upper latchbolt. Reversible latchbolt.
Technical data: case 254 × 136 × 30.5 mm; 63 mm key backset; 63 mm handle backset; zinc-plated finish; 20 mm rod travel.
Keys and supply: 3 + 3 keys with 40 mm stems. Internal and external escutcheons are supplied; rods, strike plate, screws and other accessories must be selected to suit the installation.
EASY GO spare set: Mottura lists dedicated Series 54 lever/gorge sets for this lock family; use product code 54.789 when selecting the correct spare set.
