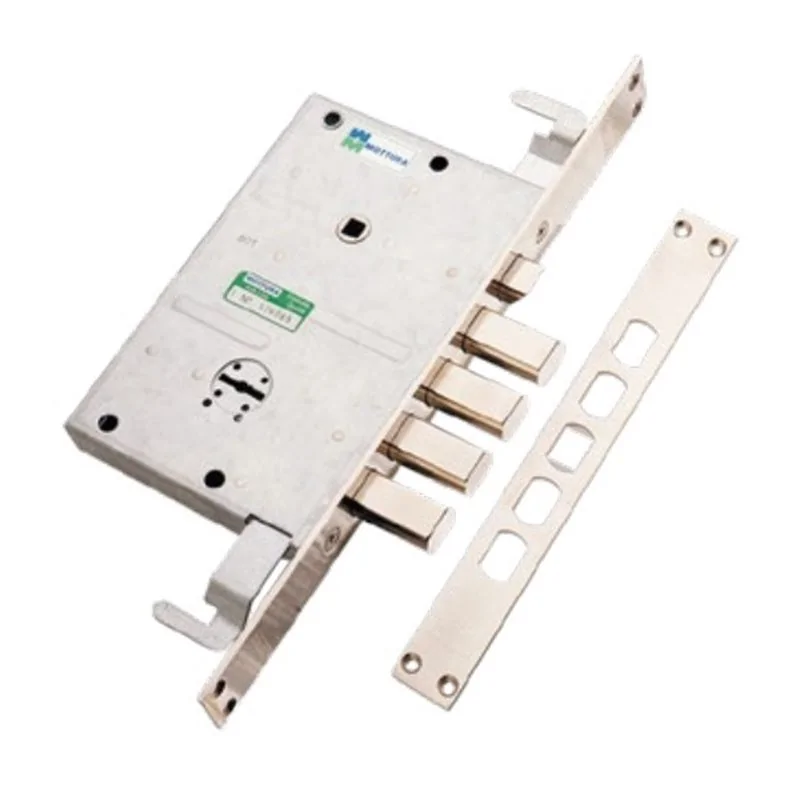

MOTTURA 72.779 SERIES 72 THREE-POINT MORTISE DOUBLE-BITTED LOCK 25 MM
€140.00
Tax Included
Mottura 72.779 Series 72 is a three-point mortise double-bitted lock for armoured doors, with 25 mm thick case, 4 turns, 64 mm backset and with reversible latchbolt operated by key and □8 handle square. Bolt travel 36 mm, rod travel 20 mm.
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Mottura 72.779 Series 72 is a three-point mortise double-bitted lock for armoured doors. Series 72 uses a 25 mm thick lock case for installations where reduced overall thickness is required.
Configuration: three-point mortise lock, 4 turns, with reversible latchbolt operated by key and □8 handle square.
Technical data: case 188 × 123 × 25 mm; key and handle backset 64 mm; 4 shaped 20 × 14 mm bolts at 28 mm centres; 36 mm bolt travel; 20 mm rod travel; zinc-plated finish.
Latchbolt: reversible on the applicable versions and operated by key and □8 handle square.
Three-point locking: prepared for connection to locking rods; rod travel is 20 mm.
Supplied with: 3 double-bitted keys with 36 mm stems and internal/external escutcheons. Mortise versions use the dedicated faceplate/strike arrangement; other accessories are not included.
Handing: 72.578/72.579/72.778/72.779 versions are supplied right- or left-hand according to configuration.
Spare parts and search: Mottura specifies lever set 91.184/123 for 72.578, 72.579, 72.778 and 72.779. The compact product code is also included in tags for easier internal search.
