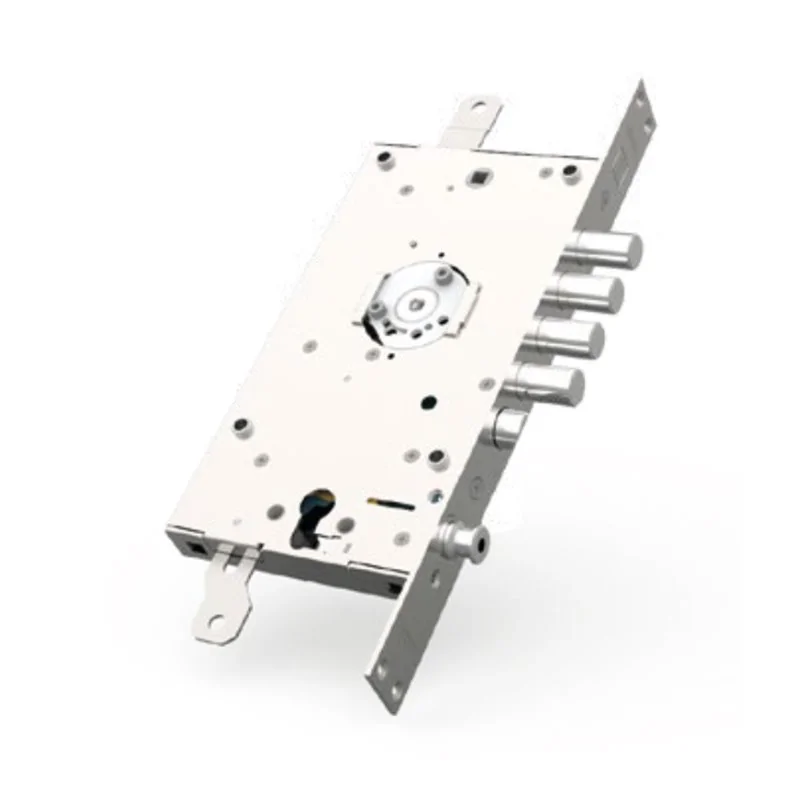

MOTTURA 3DKEY 3D.788 MULTIFUNCTION LOCK MORTISE
€368.42
Tax Included
Mottura 3D.788 3DKEY: high-security armoured-door lock with interchangeable core.
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Mottura 3D.788 3DKEY is a high-security geared lock for armoured doors with interchangeable core and 3DKEY hexagonal key.
3DKEY technology: the lock uses an interchangeable geared core operated by a hexagonal key with three coded surfaces and two desmodromic tracks. Mottura states up to 10 billion possible key combinations and protected, controlled duplication.
Technical specifications
Type and configuration: lock multifunction three-point per armoured door
Thickness: 25 mm
Latchbolt: reversible
Handle square: □8
Door-status indicator: di serie. fermo notte e semiapertura indipendenti
Upper lock: three-point con apertura a key 3DKey interno ed esterno
Lower lock: lateral con Europrofile cylinder che comanda un bolt Ø18 con travel 22 mm e il latchbolt Le serrature possono essere indifferentemente settate per funzionamento DIPENDENTE od INDIPENDENTE
Bolts / centres: lock superiore 3/4 bolts tondi Ø18 centres 28/37 lock inferiore 1 bolt tondo Ø18
Handle backset: 63
Bolt travel: lock superiore mm 28 lock inferiore mm 22 regolabile
Rod travel: 20
Key/cylinder backset: 63
Finish: Zinc-plated
Check before ordering: match complete code 3D.788, configuration, handing and the accessories required by the model.
