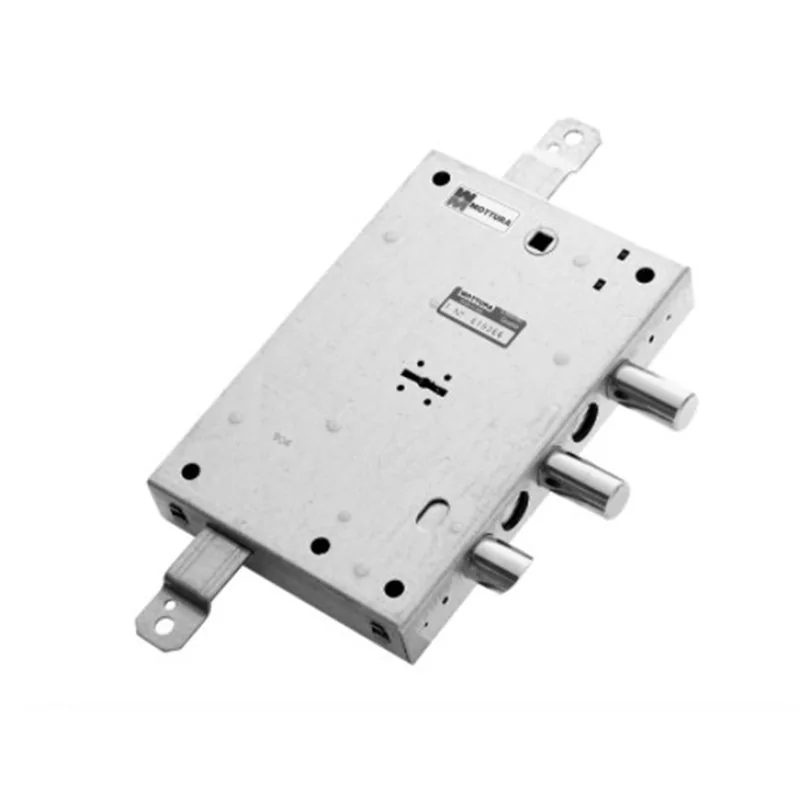

MOTTURA 89571CPC REPLACEMENT LOCK CPC DOUBLE-BITTED EXTENDED BOLTS
€177.00
Tax Included
Mottura 89571CPC: original replacement for CPC doors. Match code and configuration before ordering.
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Mottura 89571CPC is an original replacement lock for CPC doors with double-bitted mechanism, intended to replace a mechanically equivalent configuration.
Technical specifications
Type and configuration: three-point con latchbolt
Lock fixing: tramite n. 4
Latchbolt: Ø 20 mm azionato da key e handle
Bolts: Ø18 travel 40 mm
Rod travel: 20 mm
Technical detail: La
Supplied with: n. 3 chiavi double-bitted mm 40 , testa KAKI
Key/cylinder backset: mm 63
Bolt centres: mm 50 o mm 56
Latchbolt: e
Extended projection: bolts prolungati + 6 mm
Replacement compatibility: match complete code 89571CPC and the technical specifications to the installed lock; dimensions, backsets, centres, travels, fixings and mechanism layout must correspond.
