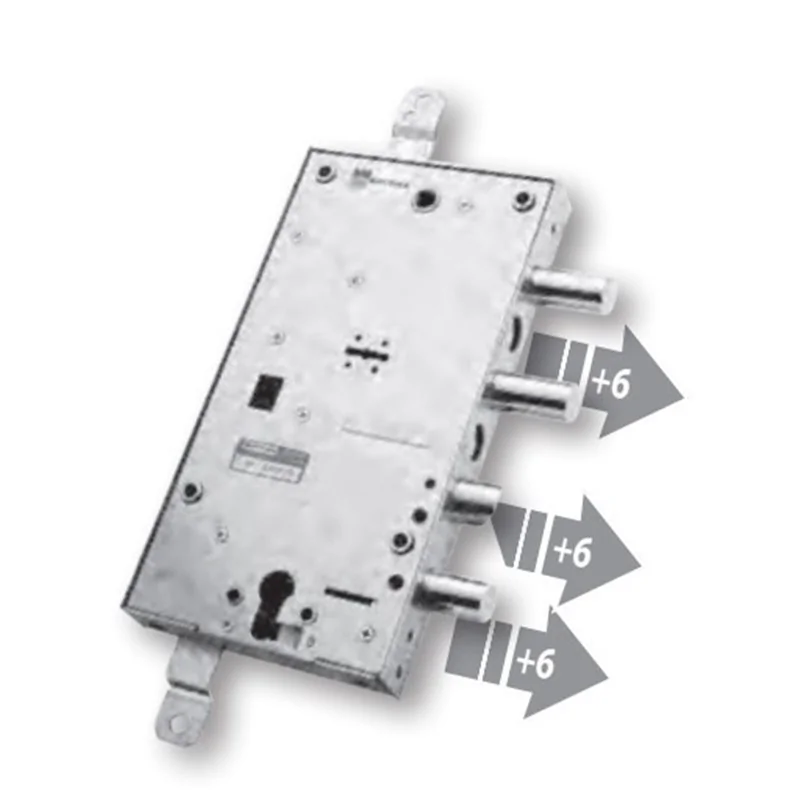

MOTTURA 89587CP5 REPLACEMENT LOCK CPC PLURISISTEMA
€230.00
Tax Included
Mottura 89587CP5: original replacement for CPC doors. Match code and configuration before ordering.
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Mottura 89587CP5 is an original replacement lock for CPC doors in Plurisystem configuration, intended to replace a mechanically equivalent configuration.
Technical specifications
Type and configuration: Replacement lock CPC three-point con latchbolt
Upper lock: a double-bitted +
Lower lock: a Europrofile cylinder
Latchbolt: reversible Ø 20 mm azionato da key, handle e cilindro
Bolts: Ø18 travel 40 mm
Cylinder function: Cilindro aziona latchbolt e
Lower bolt: Ø18 travel 22 mm
Rod travel: 20 mm
Technical detail: La
Supplied with: n. 3 chiavi double-bitted mm 40, testa KAKI
Defender fixing holes: Ø 8,1 mm (Ø 6 mm con riduttore)
Mechanism operation: SERRATURE INDIPENDENTI
Latchbolt: e
Extended projection: bolts prolungati + 6 mm
Key/cylinder backset: 63 mm
Bolt centres: mm 50
Replacement compatibility: match complete code 89587CP5 and the technical specifications to the installed lock; dimensions, backsets, centres, travels, fixings and mechanism layout must correspond.
