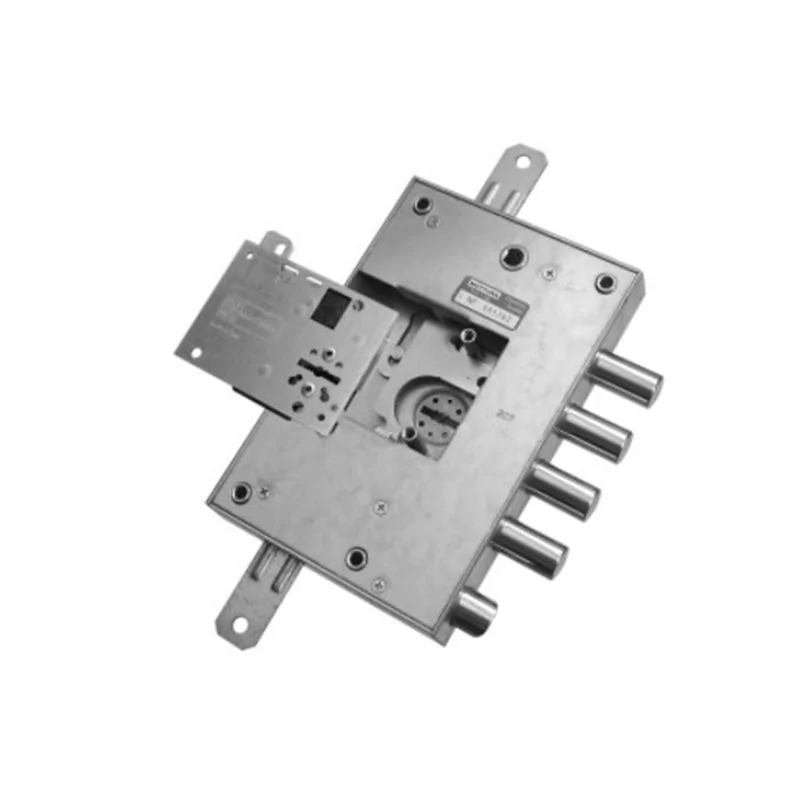

MOTTURA 89N571 REPLACEMENT LOCK DIBI DOUBLE-BITTED NUCLEO SPECIALE
€188.50
Tax Included
Mottura 89N571: original replacement for DIBI doors. Match code and configuration before ordering.
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Mottura 89N571 is an original replacement lock for DIBI doors with double-bitted mechanism, intended to replace a mechanically equivalent configuration.
Technical specifications
Type and configuration: three-point con latchbolt
Latchbolt: Ø 20 mm azionato da key e handle
Latchbolt: non reversible
Bolts: Ø18 travel 36 mm
Rod travel: 20 mm
Bolt centres: 32 mm
Technical detail: La
Supplied with: n. 1 nucleo SPECIALE 91057DBD/S n. 3 chiavi double-bitted mm 40 , testa KAKI n. 1 mostrina int + n. 1 mostrina est
Replacement compatibility: match complete code 89N571 and the technical specifications to the installed lock; dimensions, backsets, centres, travels, fixings and mechanism layout must correspond.
