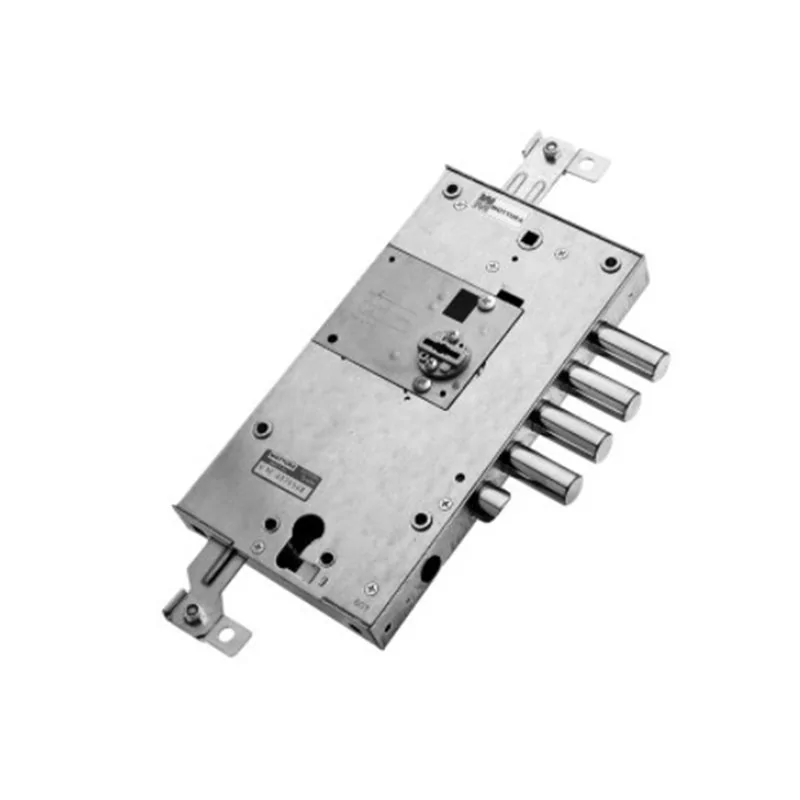

MOTTURA 89K597DR REPLACEMENT LOCK DIERRE PLURISISTEMA DOUBLE-BITTED PIU' CILINDRO
€274.00
Tax Included
Mottura 89K597DR: original replacement for DIERRE doors. Match code and configuration before ordering.
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Mottura 89K597DR is an original replacement lock for DIERRE doors in Plurisystem configuration, intended to replace a mechanically equivalent configuration.
Technical specifications
Type and configuration: Replacement lock DIERRE three-point con latchbolt
Bolt reinforcement: Leva di rinforzo sui bolts (B) Disponibile in
Version: con nucleo QUICK MyKey (M)
Upper lock: a double-bitted con nucleo QUICK +
Lower lock: a Europrofile cylinder
Latchbolt: reversible Ø 20 mm azionato da key, handle e
Lower cylinder function: cilindro inferiore
Bolts: Ø18 travel 36 mm
Rod travel: 20 mm
Rod offsets: 24 mm
Lower lock: a
Cylinder function: cilindro aziona latchbolt e chiusura
Key/cylinder backset: superiore
Key system: Versione MyKey con carta di proprietà
Technical detail: La
Supplied with: n. 1 nucleo QUICK n. 3 chiavi double-bitted mm 40, testa TURCHESE (in versione My Key n. 3 chiavi double-bitted mm 40, testa TURCHESE + carta di proprietà) n. 1 mostrina int (anod.bronzo) n. 1 mostrina esterna (anod.bronzo)
Defender fixing holes: Ø 8,1 - (Ø 6,0 con riduttore )
Mechanism operation: SERRATURE DIPENDENTI A CHIUSURA
Latchbolt: e
Upper bolts: prolungati + 10 mm
Key/cylinder backset: 63 mm
Bolt centres: mm 28
Replacement compatibility: match complete code 89K597DR and the technical specifications to the installed lock; dimensions, backsets, centres, travels, fixings and mechanism layout must correspond.
