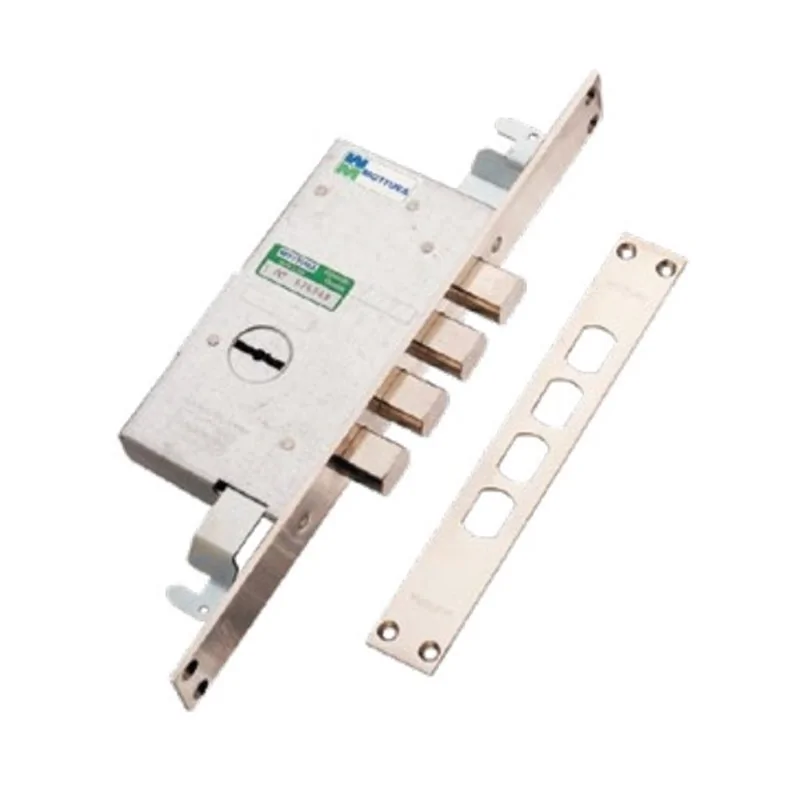

MOTTURA 72.130 SERIES 72 THREE-POINT MORTISE DOUBLE-BITTED LOCK 25 MM
€120.00
Tax Included
Mottura 72.130 Series 72 is a three-point mortise double-bitted lock for armoured doors, with 25 mm thick case, 2 turns, 47 mm backset and without latchbolt. Bolt travel 18 mm, rod travel 17 mm.
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Mottura 72.130 Series 72 is a three-point mortise double-bitted lock for armoured doors. Series 72 uses a 25 mm thick lock case for installations where reduced overall thickness is required.
Configuration: three-point mortise lock, 2 turns, without latchbolt.
Technical data: case 156 × 78 × 25 mm; key and handle backset 47 mm; 4 shaped 20 × 14 mm bolts at 28 mm centres; 18 mm bolt travel; 17 mm rod travel; zinc-plated finish.
Latchbolt: reversible on the applicable versions and operated by key and □8 handle square.
Three-point locking: prepared for connection to locking rods; rod travel is 17 mm.
Supplied with: 3 double-bitted keys with 36 mm stems and internal/external escutcheons. Mortise versions use the dedicated faceplate/strike arrangement; other accessories are not included.
Handing: the 47 mm backset Series 72 configuration is ambidextrous.
Spare parts and search: Mottura specifies lever set 91.184/123 for 72.578, 72.579, 72.778 and 72.779. The compact product code is also included in tags for easier internal search.
