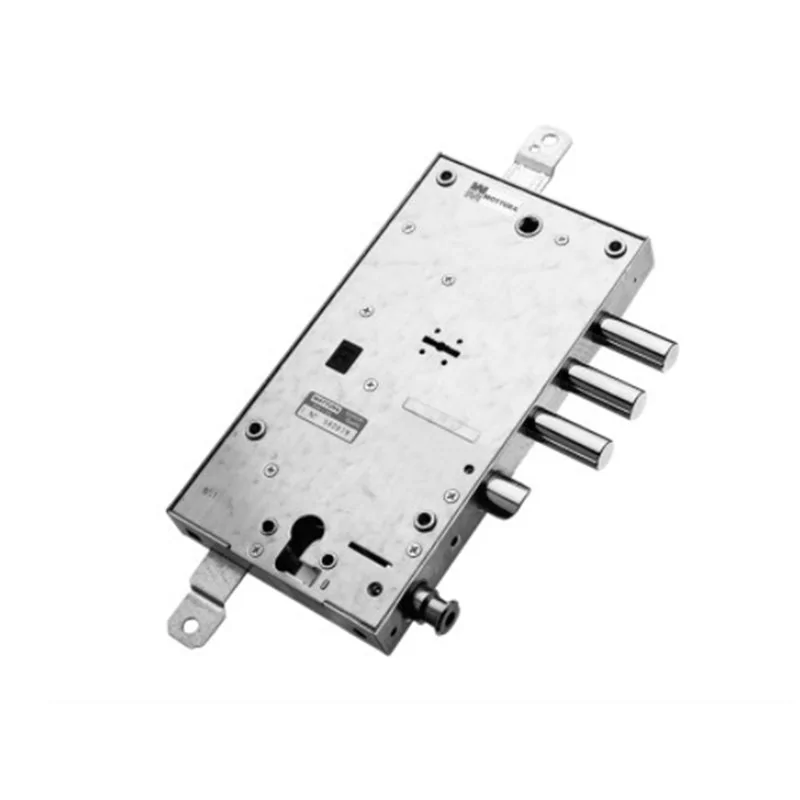

MOTTURA 89588DB REPLACEMENT LOCK DIBI PLURISISTEMA
€238.00
Tax Included
Mottura 89588DB: original replacement for DIBI doors. Match code and configuration before ordering.
Security policy(edit with the Customer Reassurance module)
Delivery policy(edit with the Customer Reassurance module)
Return policy(edit with the Customer Reassurance module)
Mottura 89588DB is an original replacement lock for DIBI doors in Plurisystem configuration, intended to replace a mechanically equivalent configuration.
Technical specifications
Type and configuration: Replacement lock DIBI three-point con latchbolt
Latchbolt: reversible Ø 20 mm azionato da key, handle e cilindro
Bolts: Ø18 travel 40 mm
Lower lock: (con FERMO-NOTTE e semi-apertura indipendenti) comanda latchbolt e
Lower bolt: bolt iferiore Ø18 travel 21 mm (sporgenza regolabile)
Rod travel: 20 mm
Technical detail: La
Supplied with: n. 3 chiavi double-bitted mm 40, testa KAKI n. 1 mostrina int + n. 1 mostrina est (anod.bronzo)
Defender fixing holes: Ø 8,1 mm (Ø 6 mm con riduttore)
Mechanism operation: SERRATURE DIPENDENTI
Latchbolt: e bolts auperiori prolungati + 3 mm
Key/cylinder backset: 63 mm
Bolt centres: mm 37
Replacement compatibility: match complete code 89588DB and the technical specifications to the installed lock; dimensions, backsets, centres, travels, fixings and mechanism layout must correspond.
